CONFIDENTIAL AUDIT

Forensic Hardware Discrepancy Report

Prepared for AliExpress Dispute Resolution Team

Case ID: 2503807694826141
Order ID: 8210170286660934

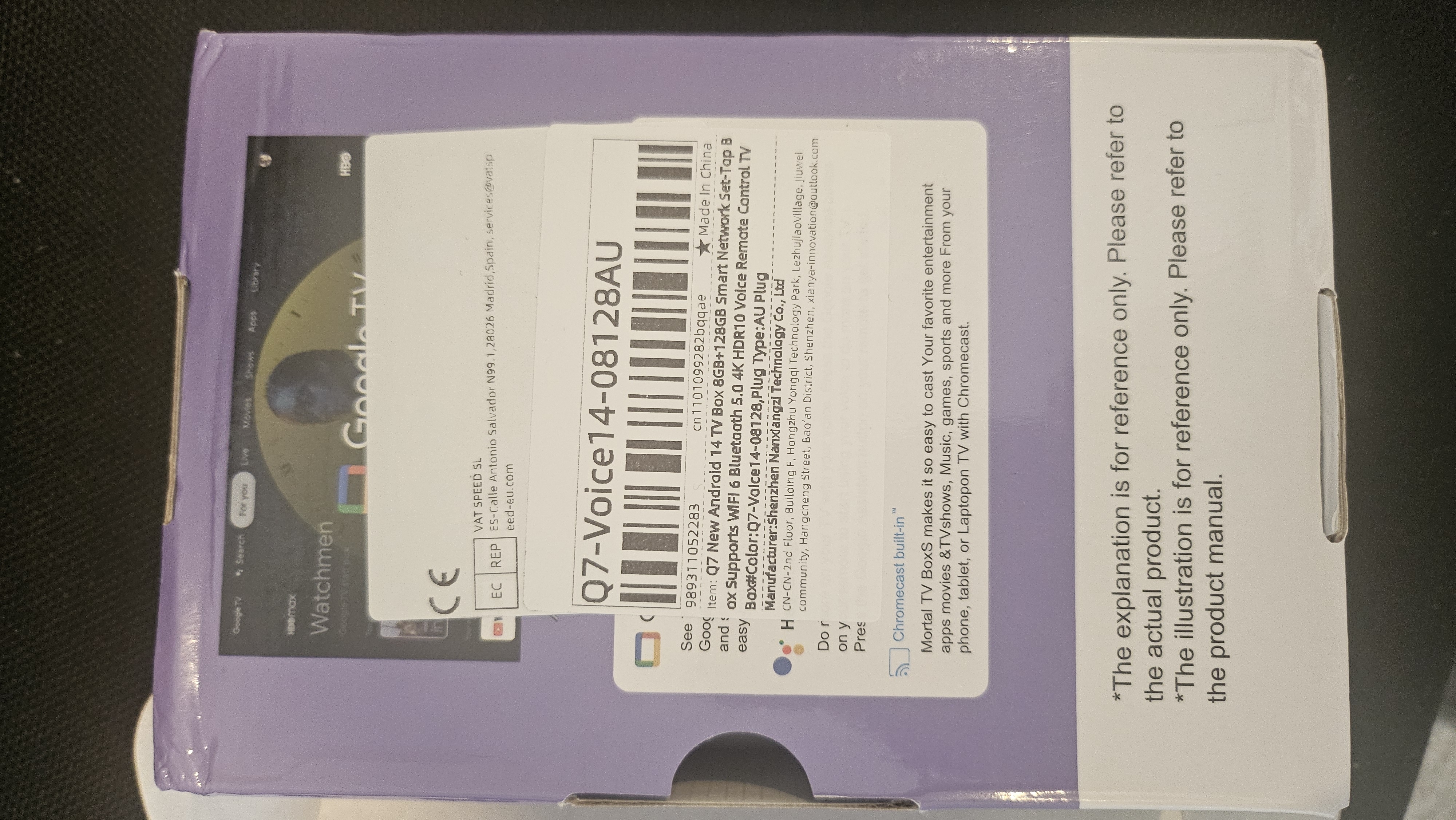

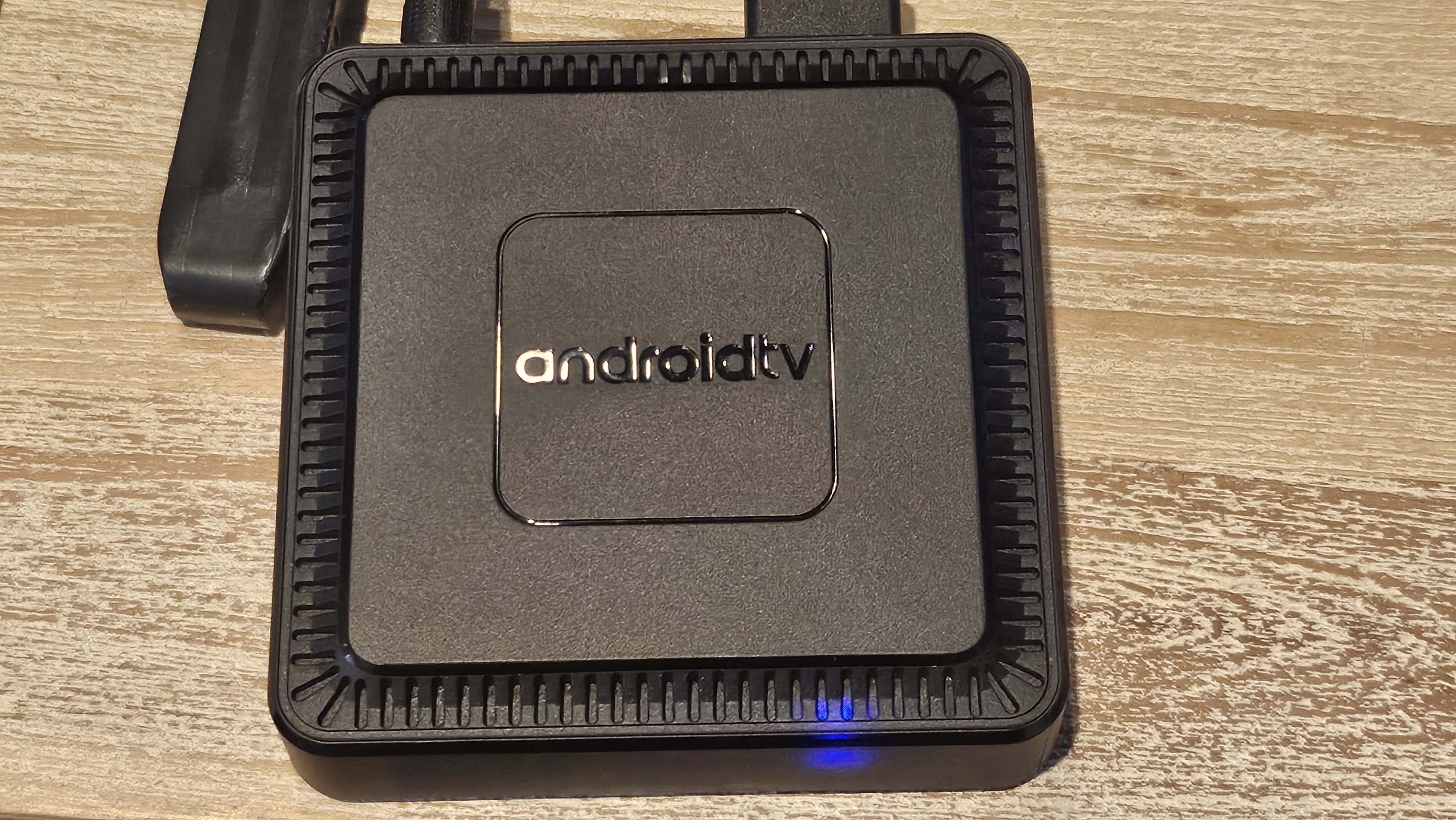

Product: Q7 Android 14 TV Box (8GB+128GB)

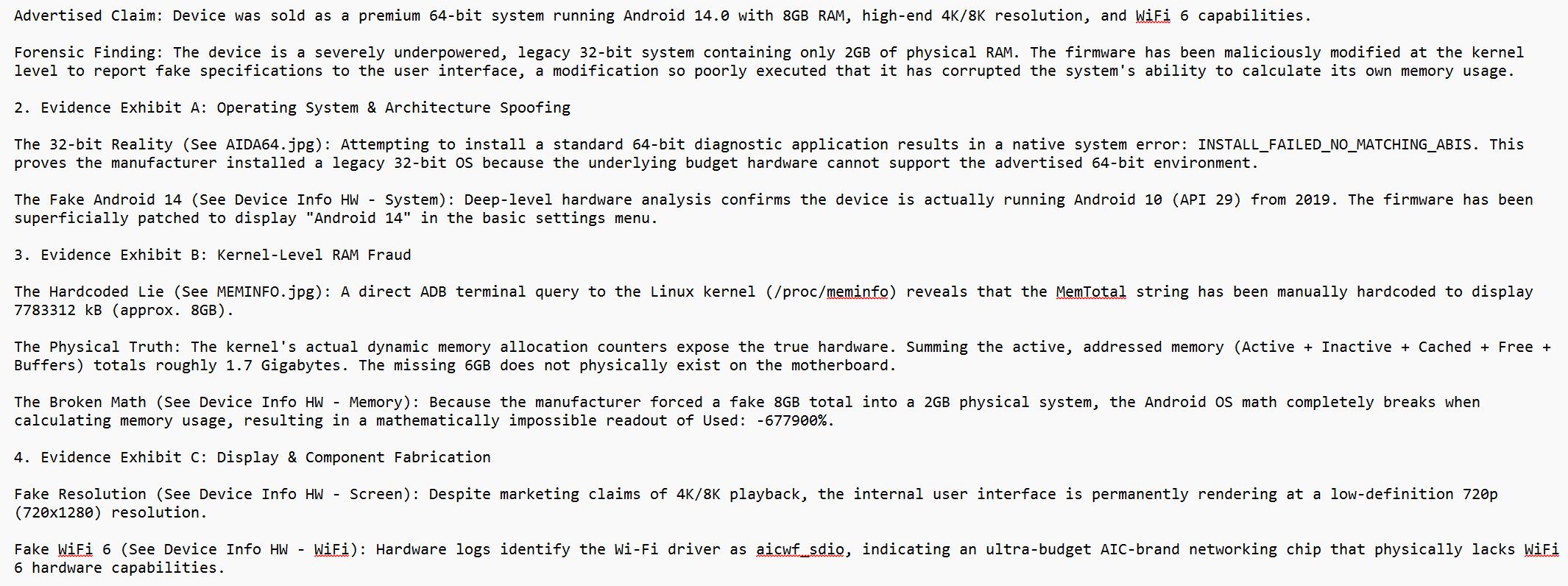

1. Executive Summary

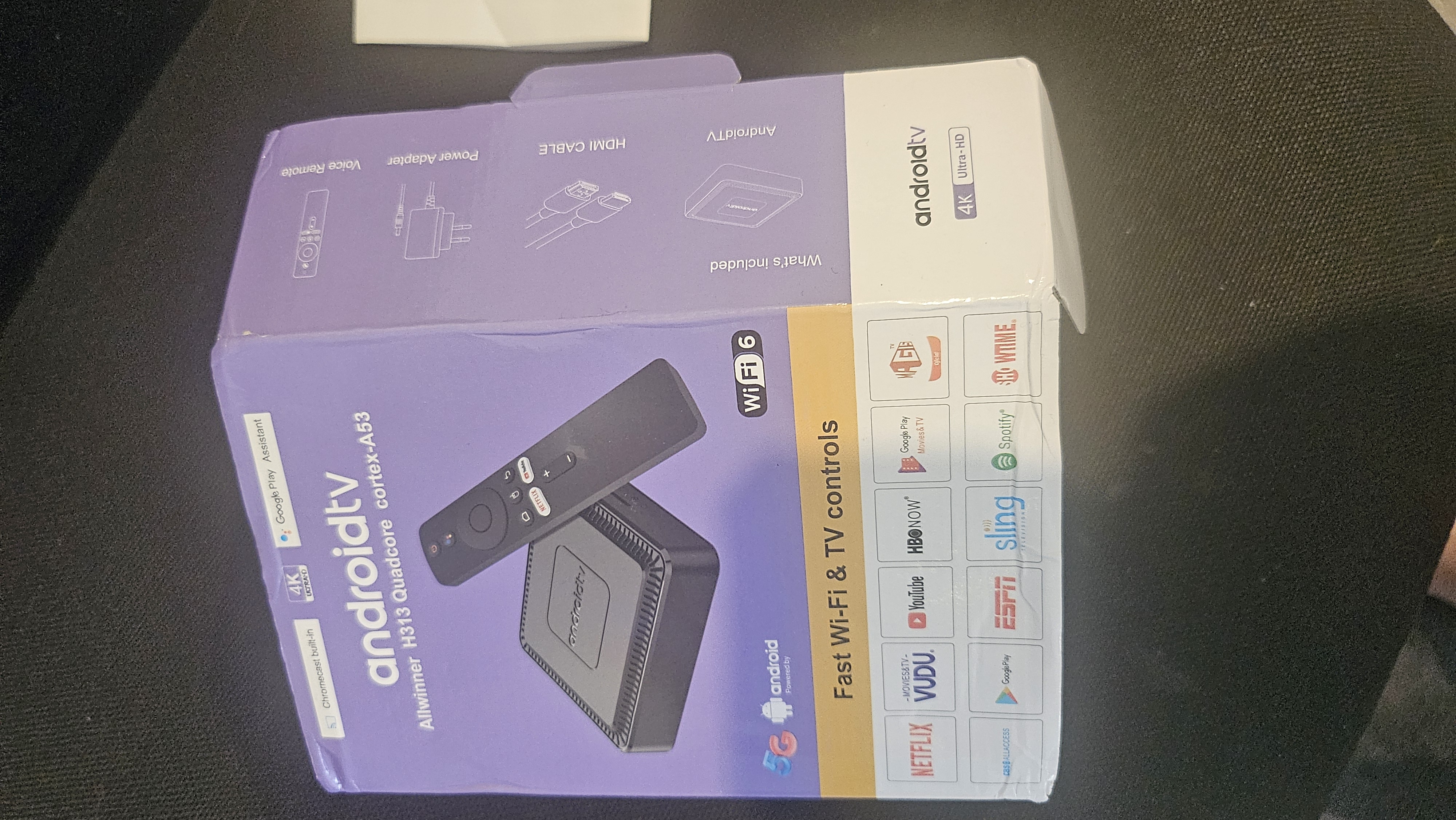

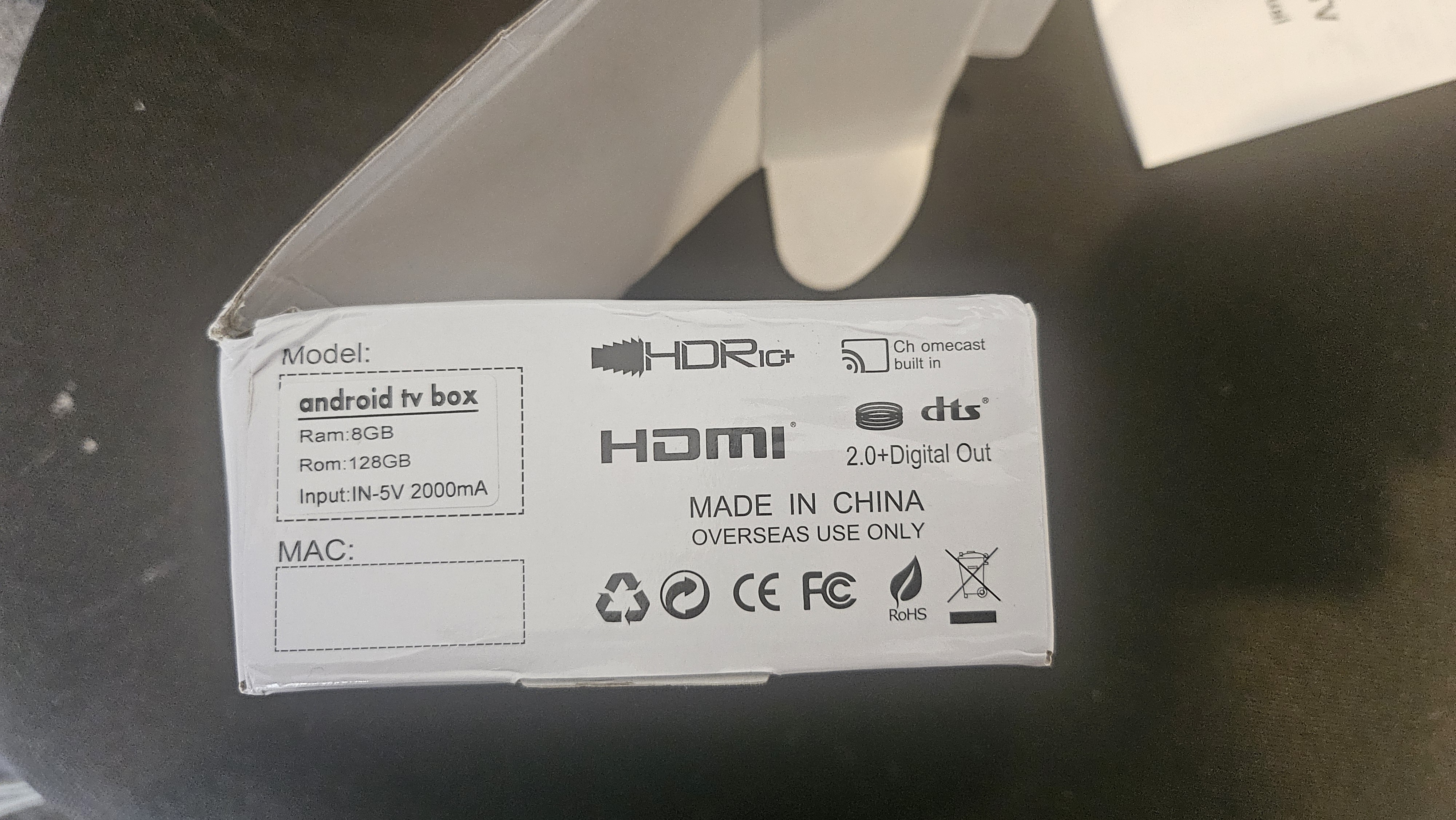

Advertised Claim: Device was sold as a premium 64-bit system running Android 14.0 with 8GB RAM, high-end 4K/8K resolution, and WiFi 6 capabilities.

Forensic Finding: The device is a severely underpowered, legacy 32-bit system containing only 2GB of physical RAM. The firmware has been maliciously modified at the kernel level to report fake specifications to the user interface, a modification so poorly executed that it has corrupted the system's ability to calculate its own memory usage.

2. OS & Architecture Spoofing

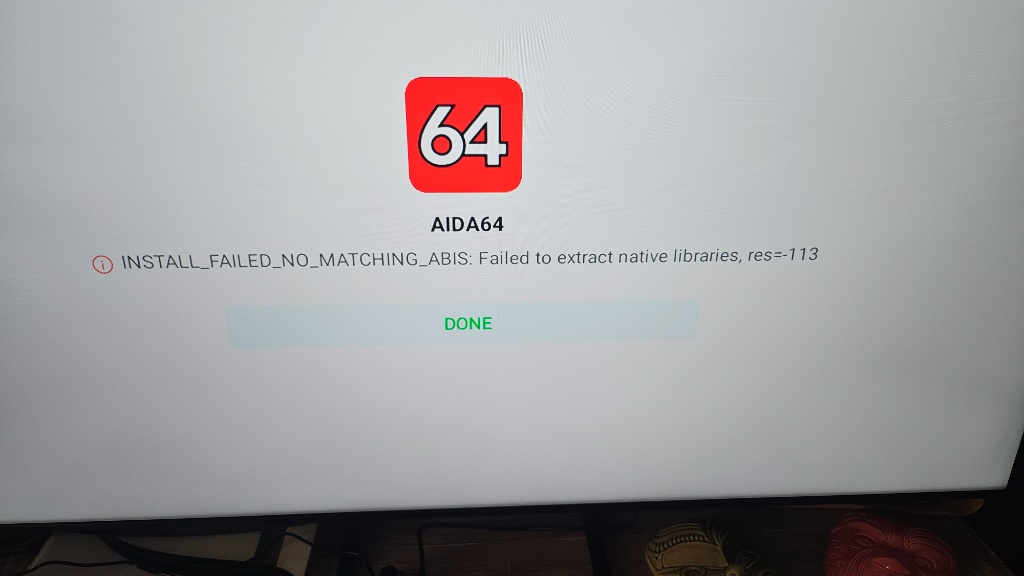

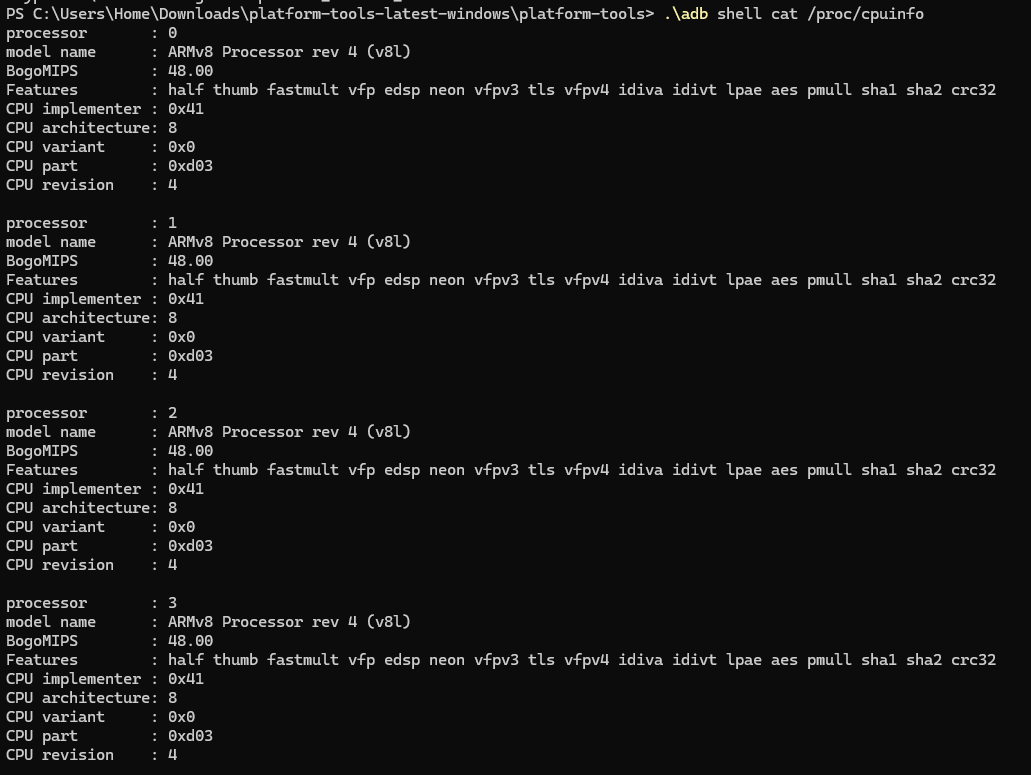

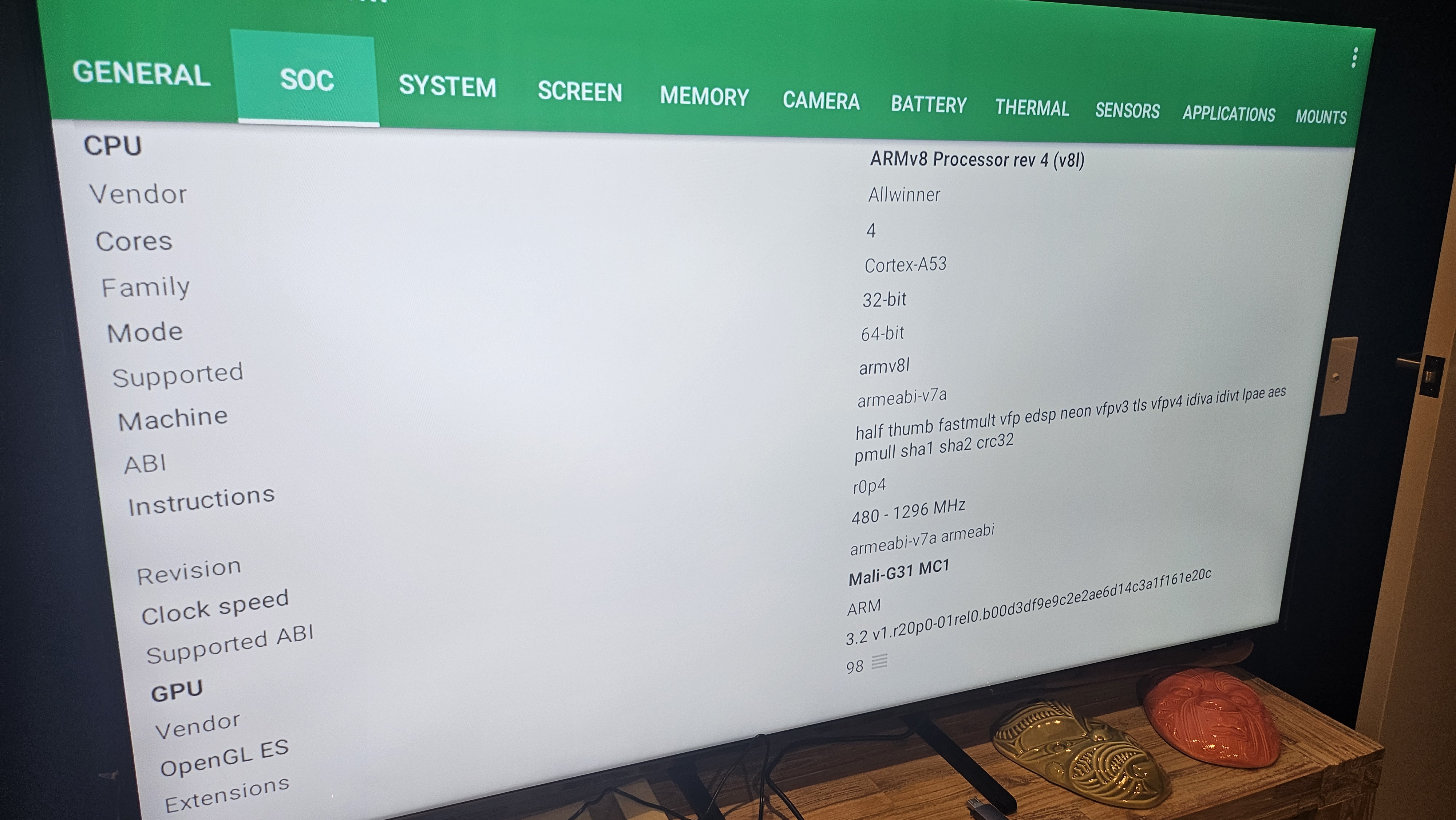

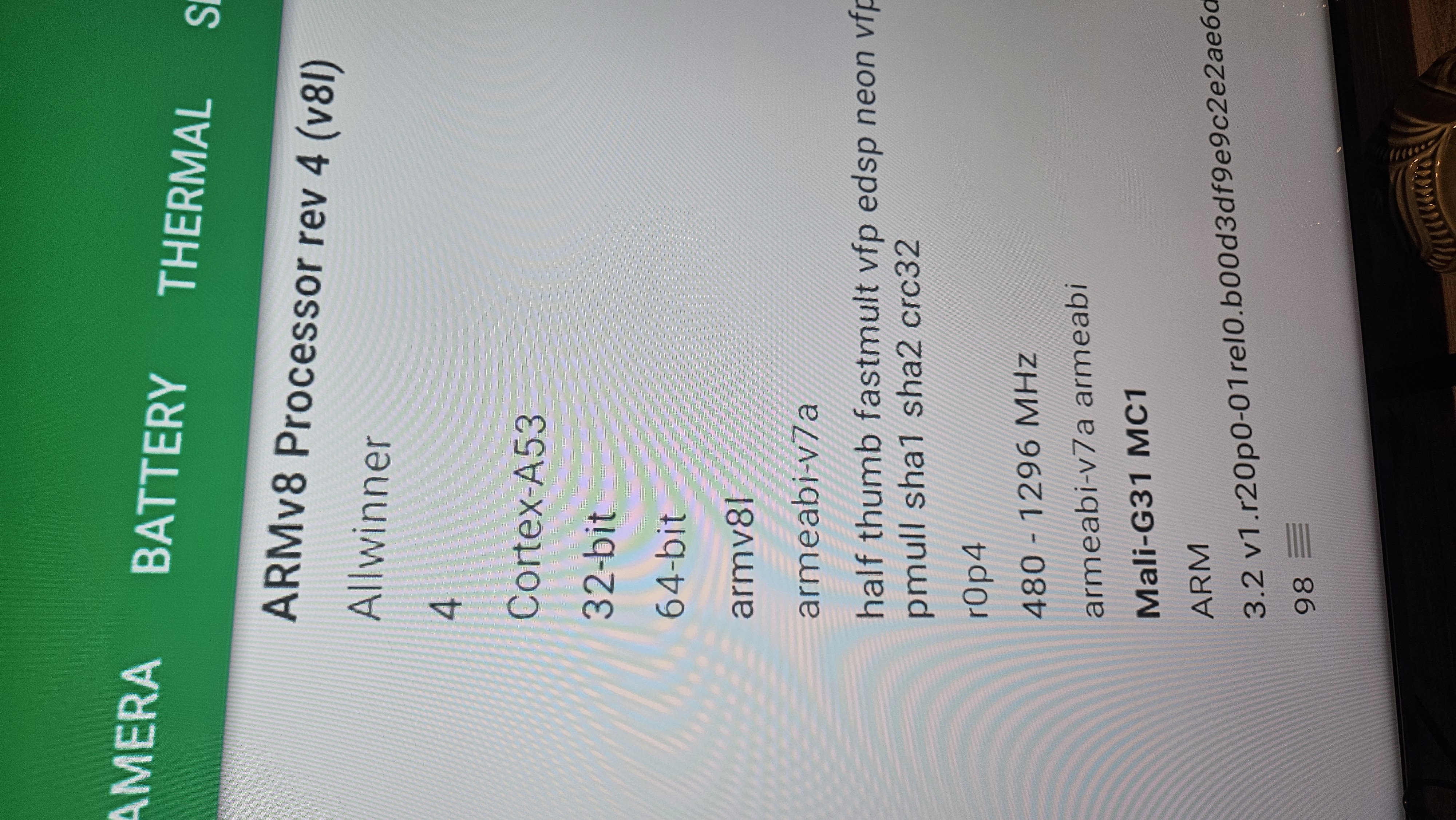

The 32-bit Reality: Attempting to install a standard 64-bit diagnostic application results in a native system error: INSTALL_FAILED_NO_MATCHING_ABIS. This proves the hardware cannot support 64-bit environments.

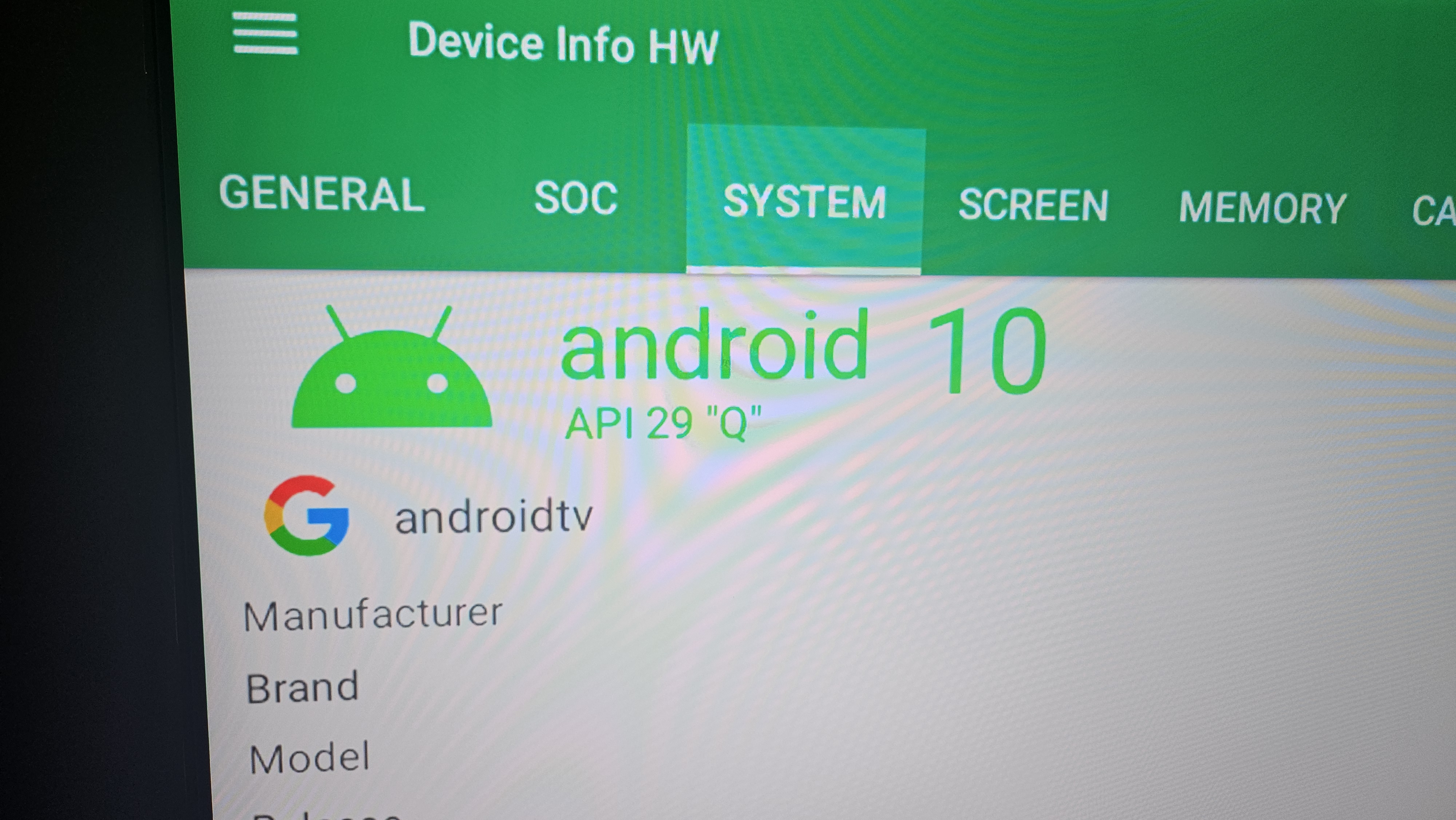

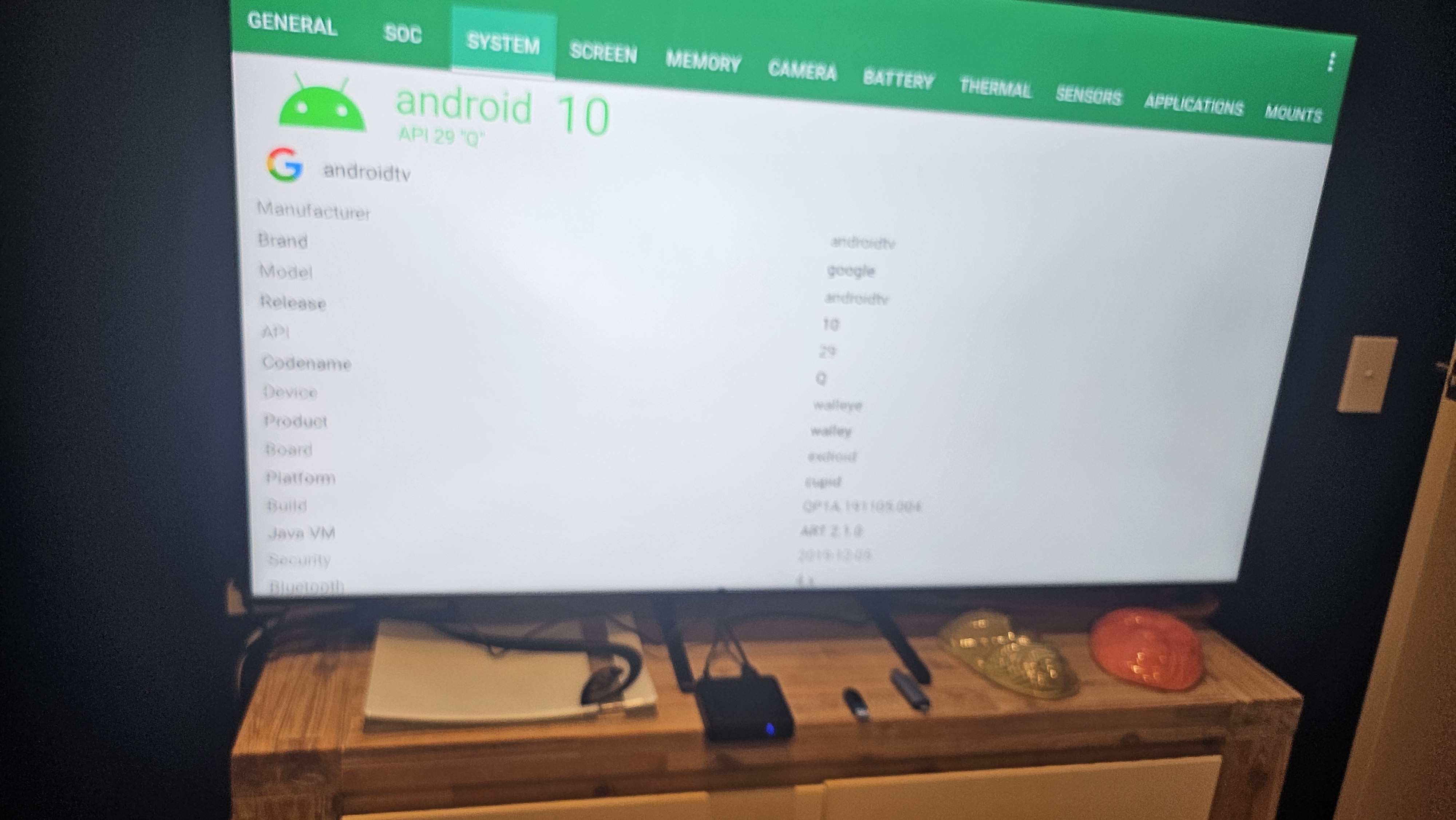

Fake Android 14: Analysis confirms the device is actually running Android 10 (API 29) from 2019. The firmware has been superficially patched to display "Android 14".

View AIDA64 Proof

3. Kernel-Level RAM Fraud

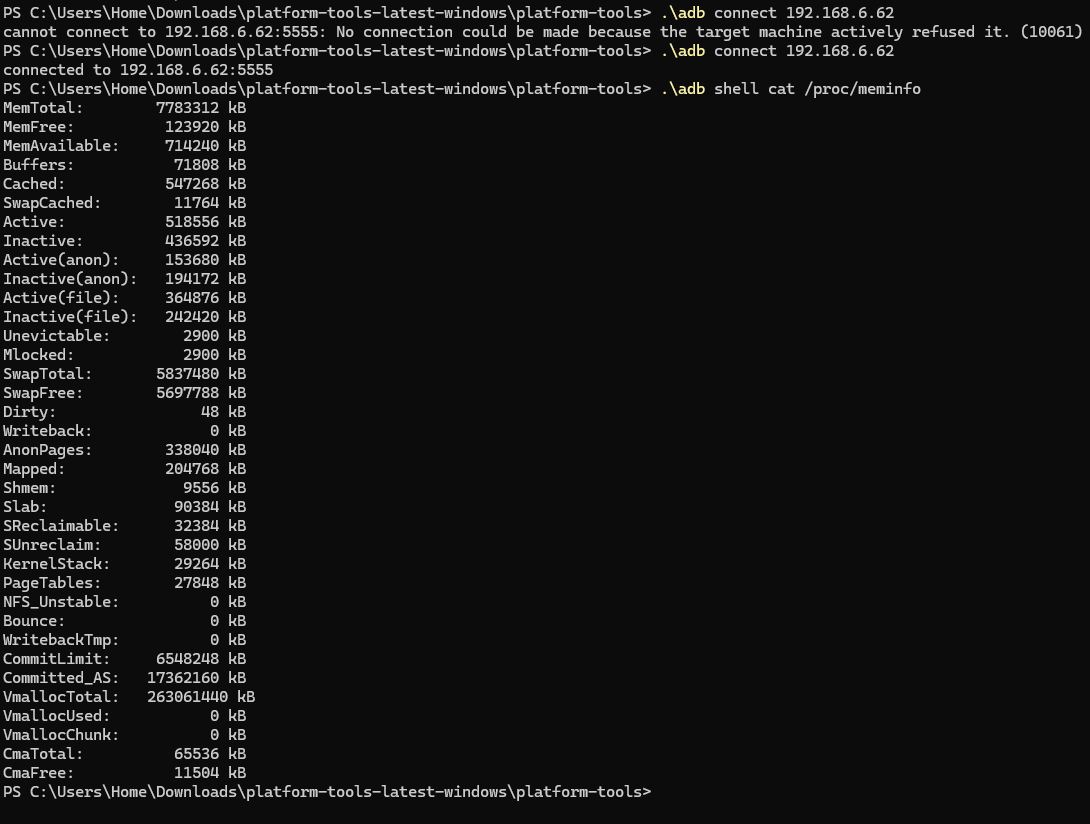

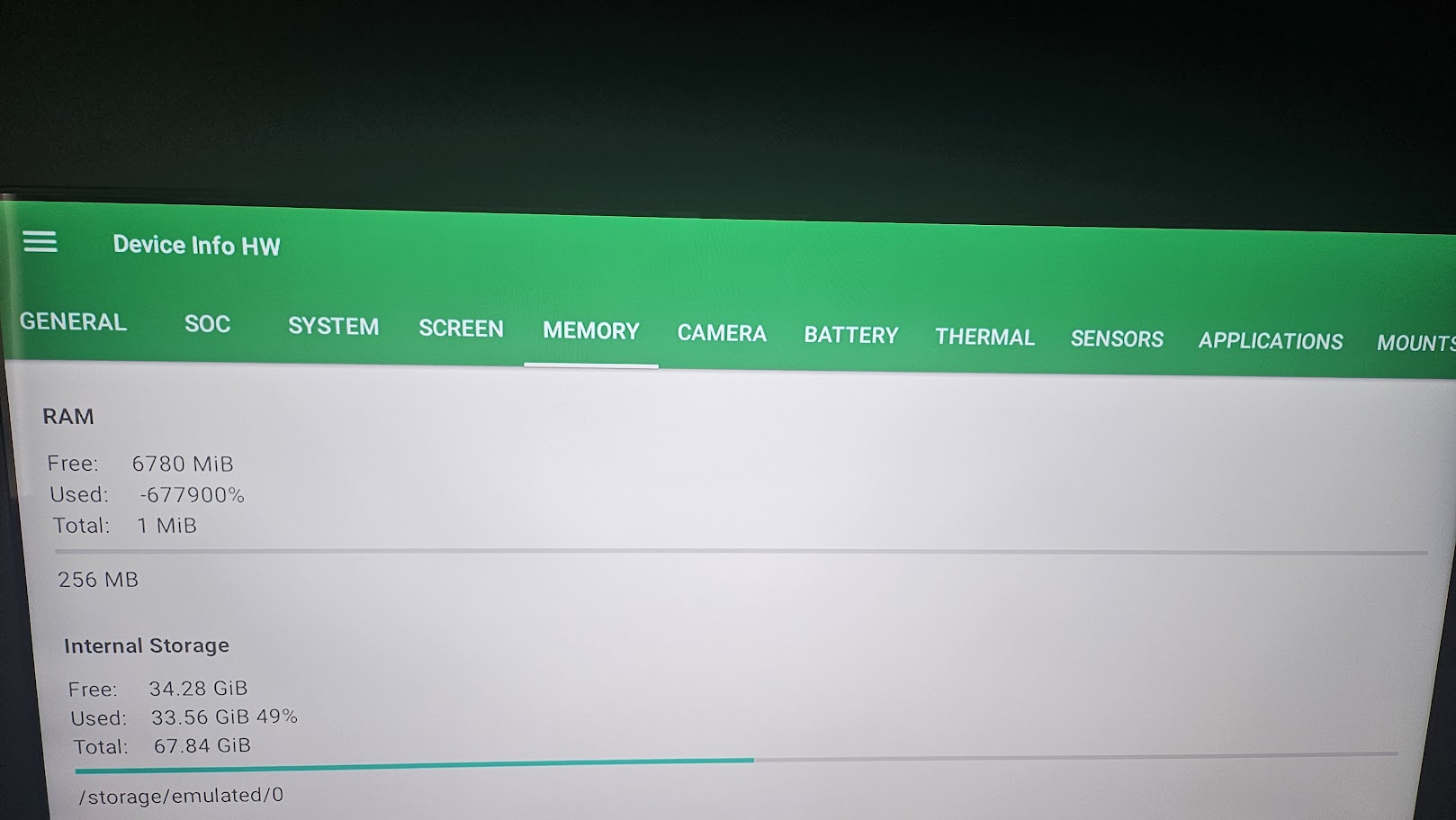

The Hardcoded Lie: A direct ADB terminal query to /proc/meminfo reveals that the MemTotal string has been manually hardcoded to display 7783312 kB.

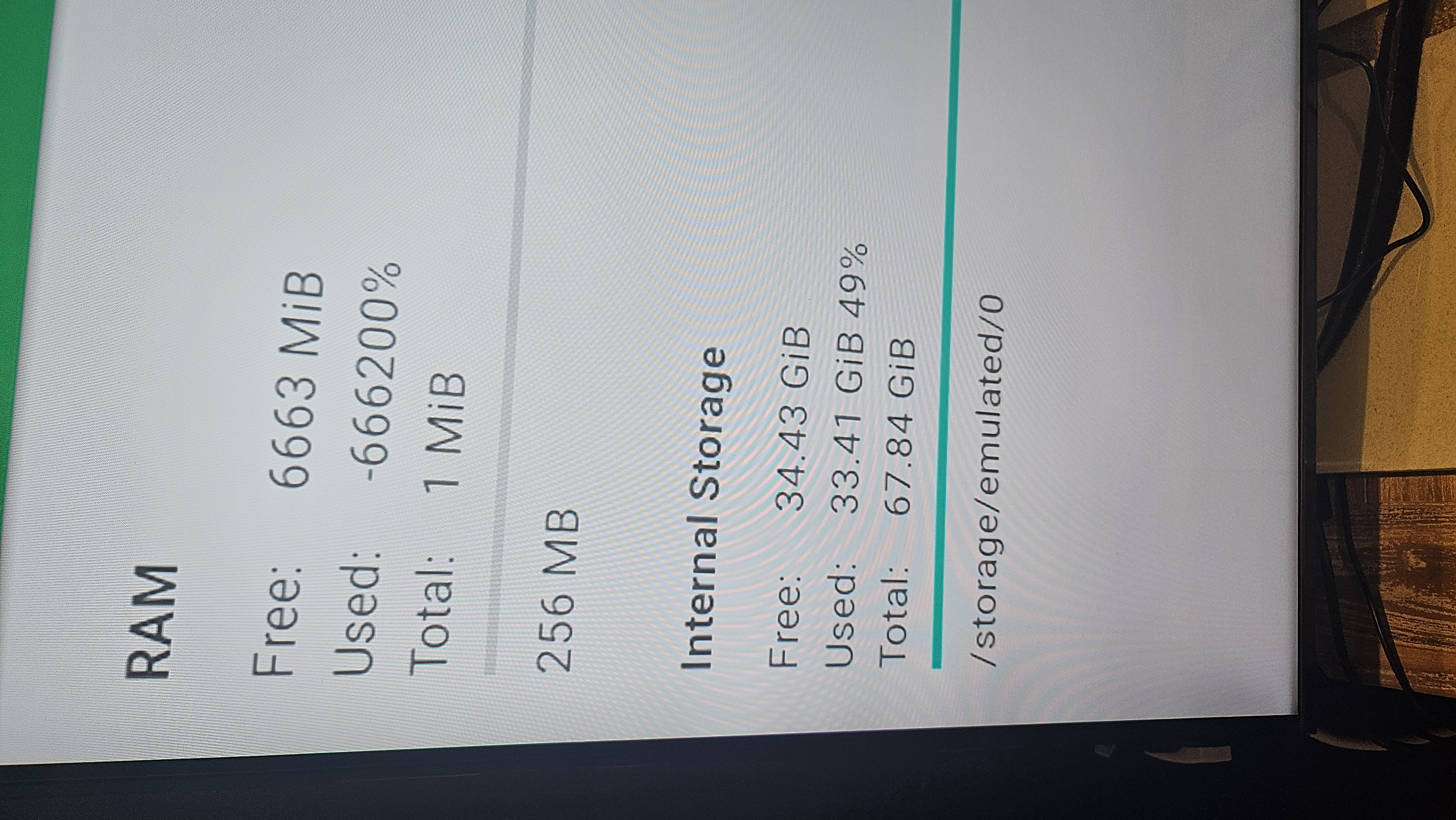

The Broken Math: Forcing a fake 8GB total into a 2GB physical system results in a mathematically impossible readout of Used: -677900%.

View Memory Audit

4. Component Fabrication

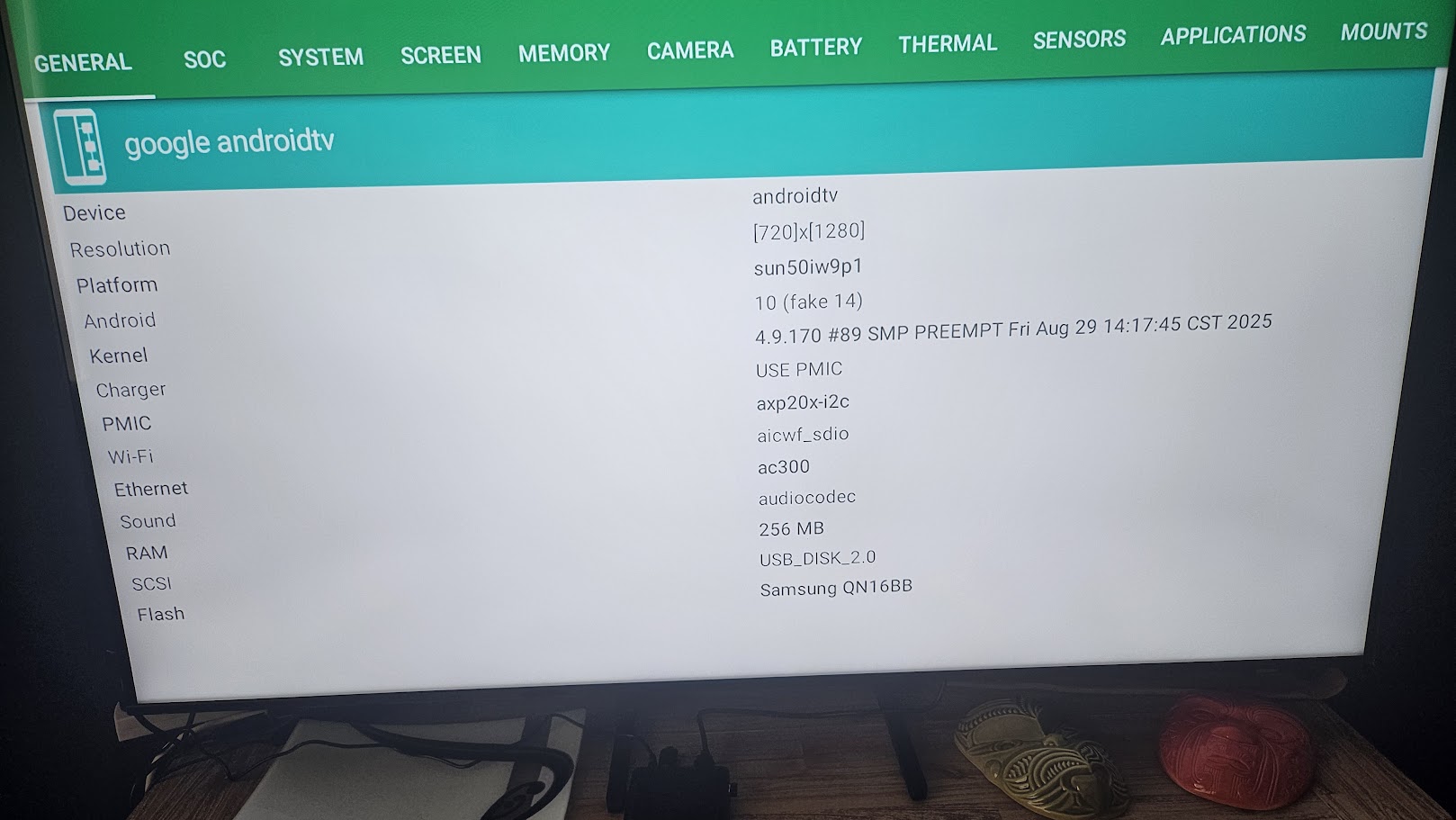

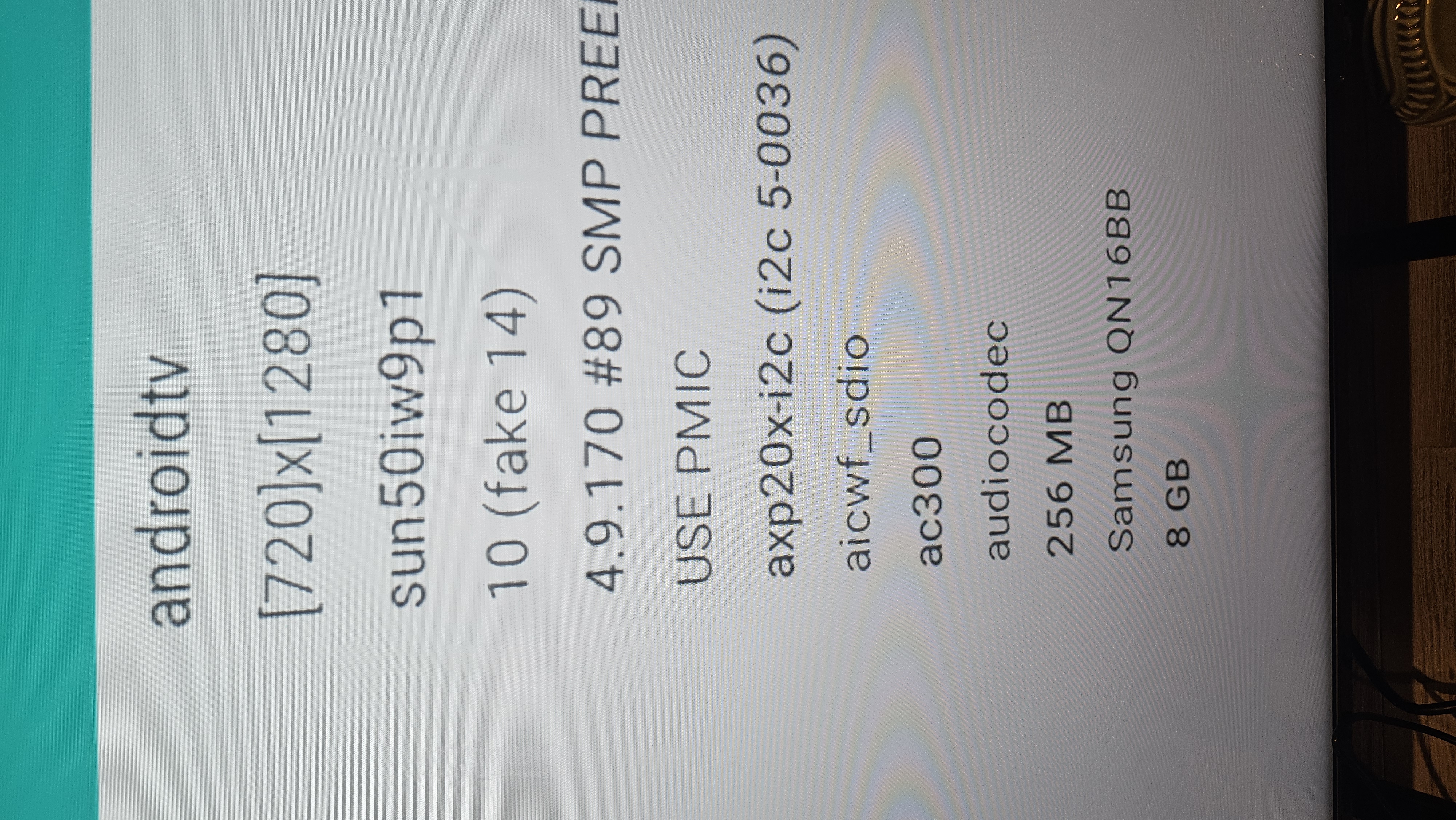

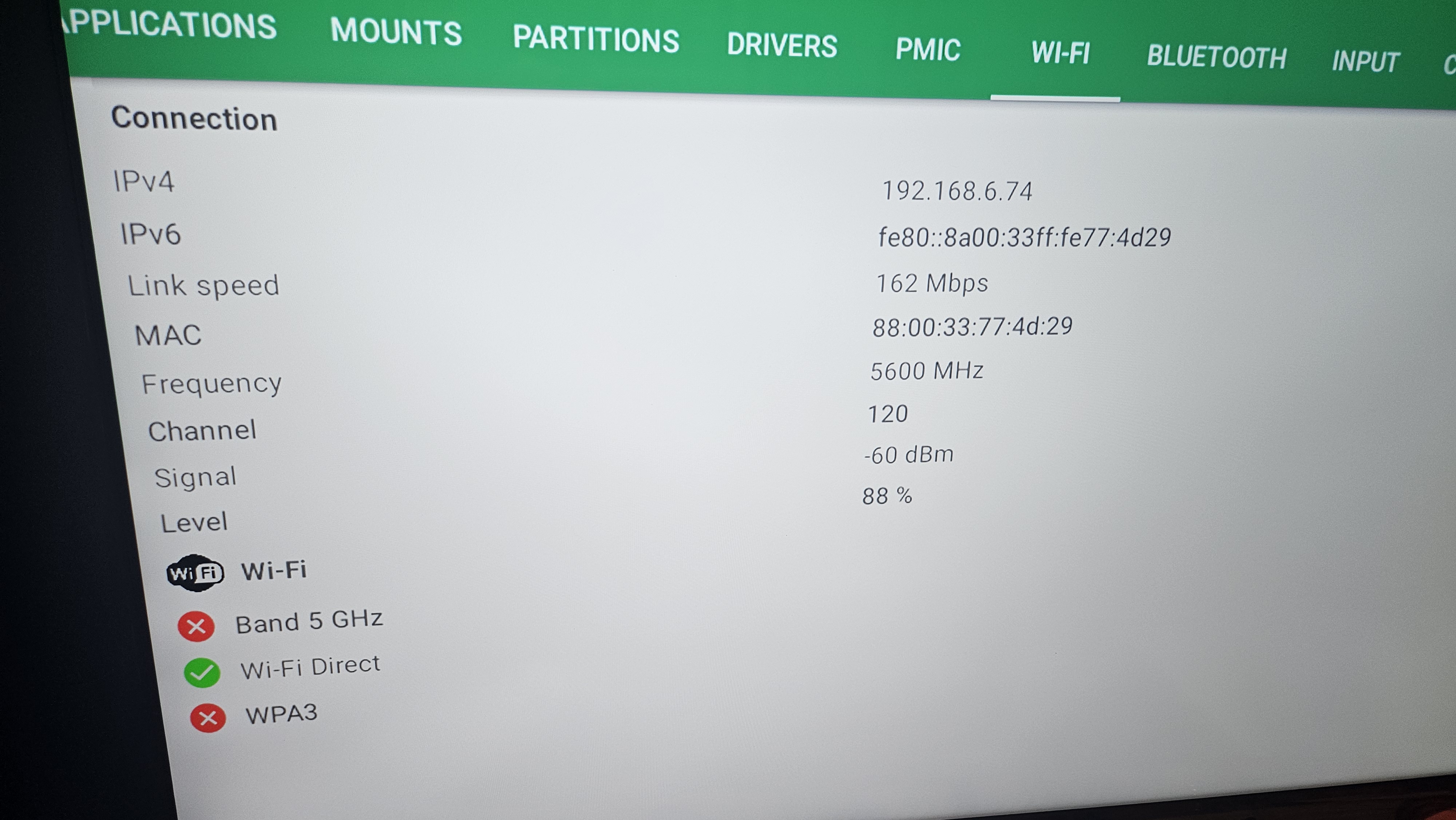

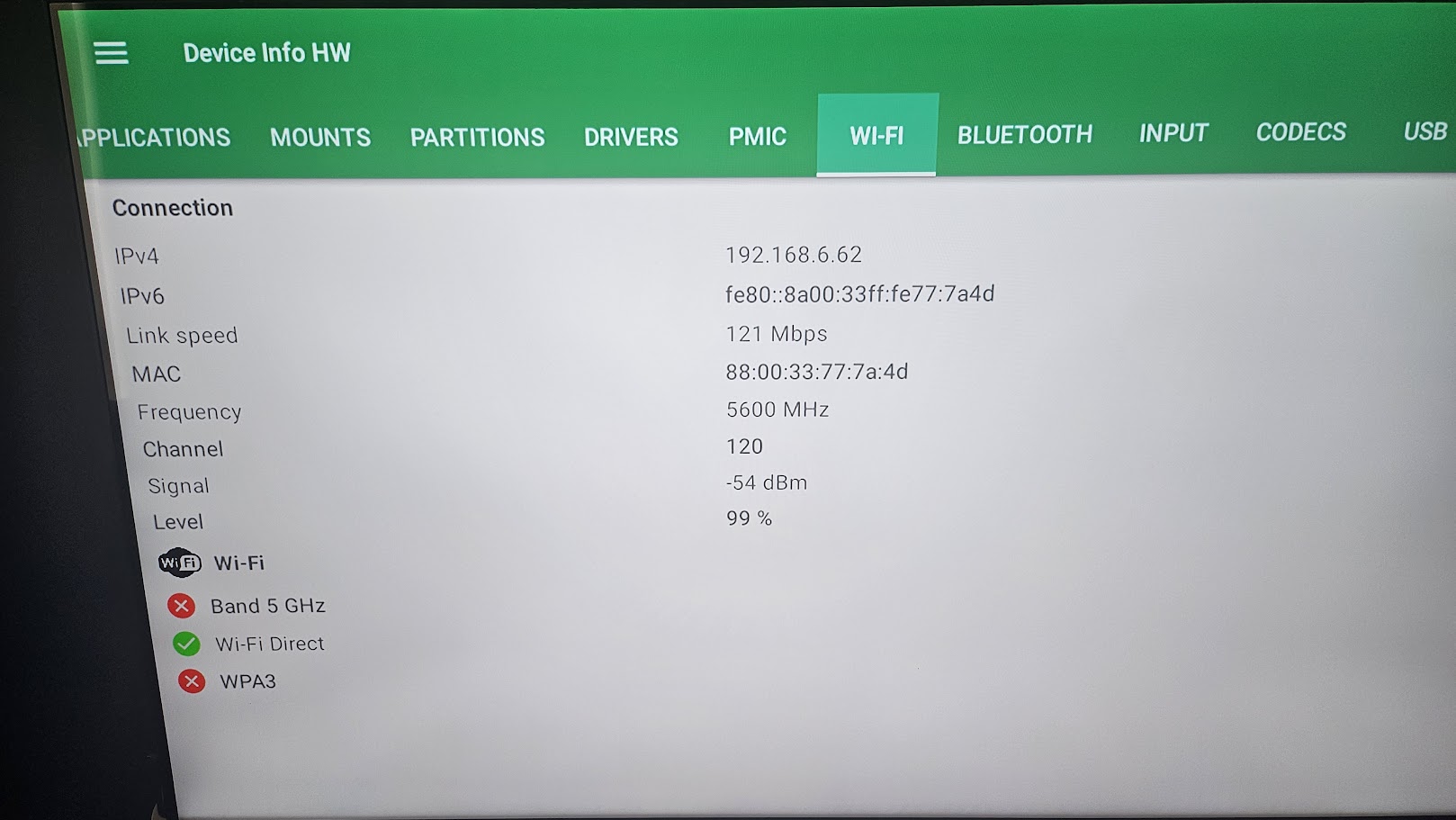

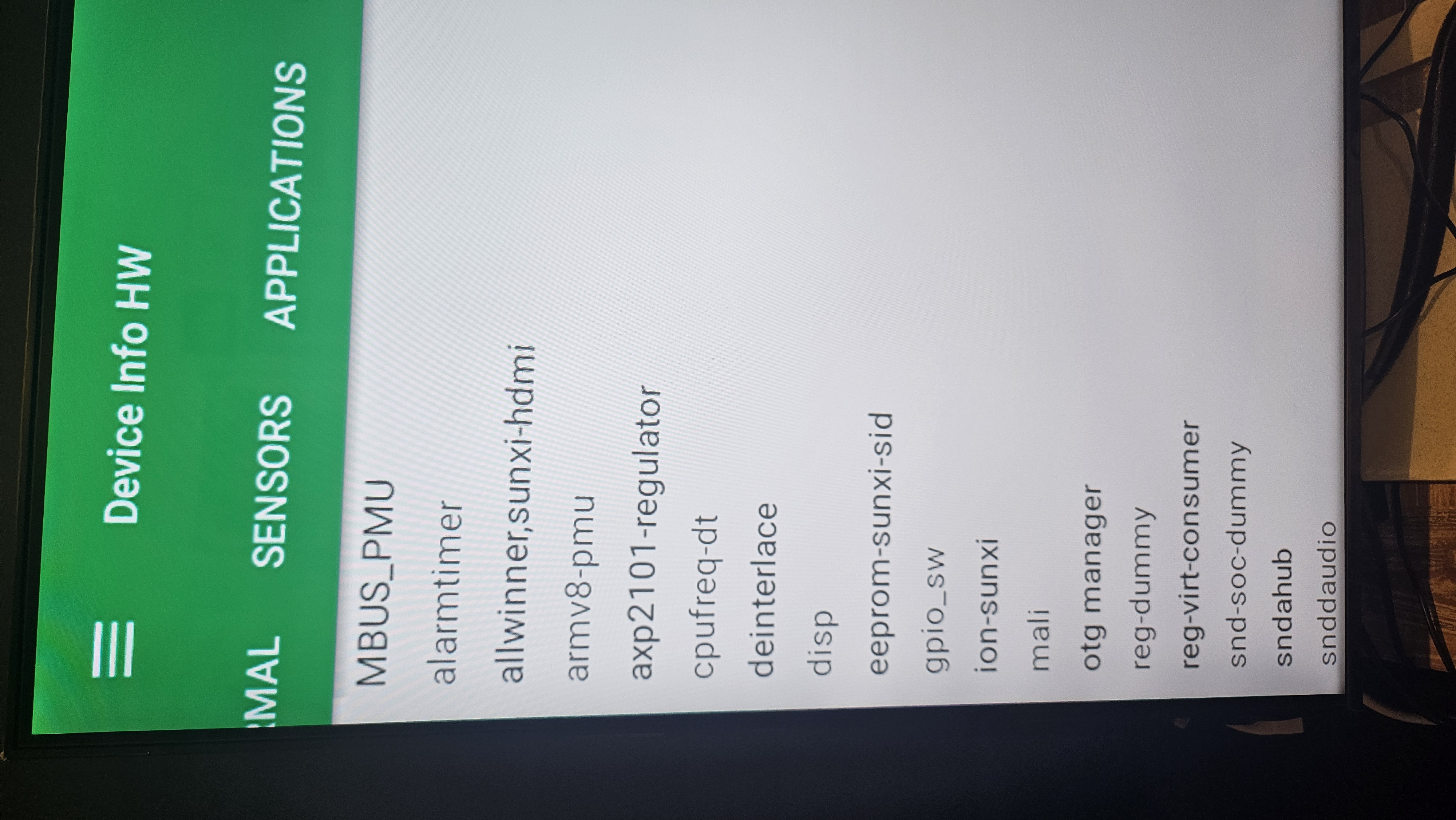

Fake WiFi 6: Hardware logs identify the chip as aicwf_sdio, an ultra-budget chip that physically lacks WiFi 6 capabilities.

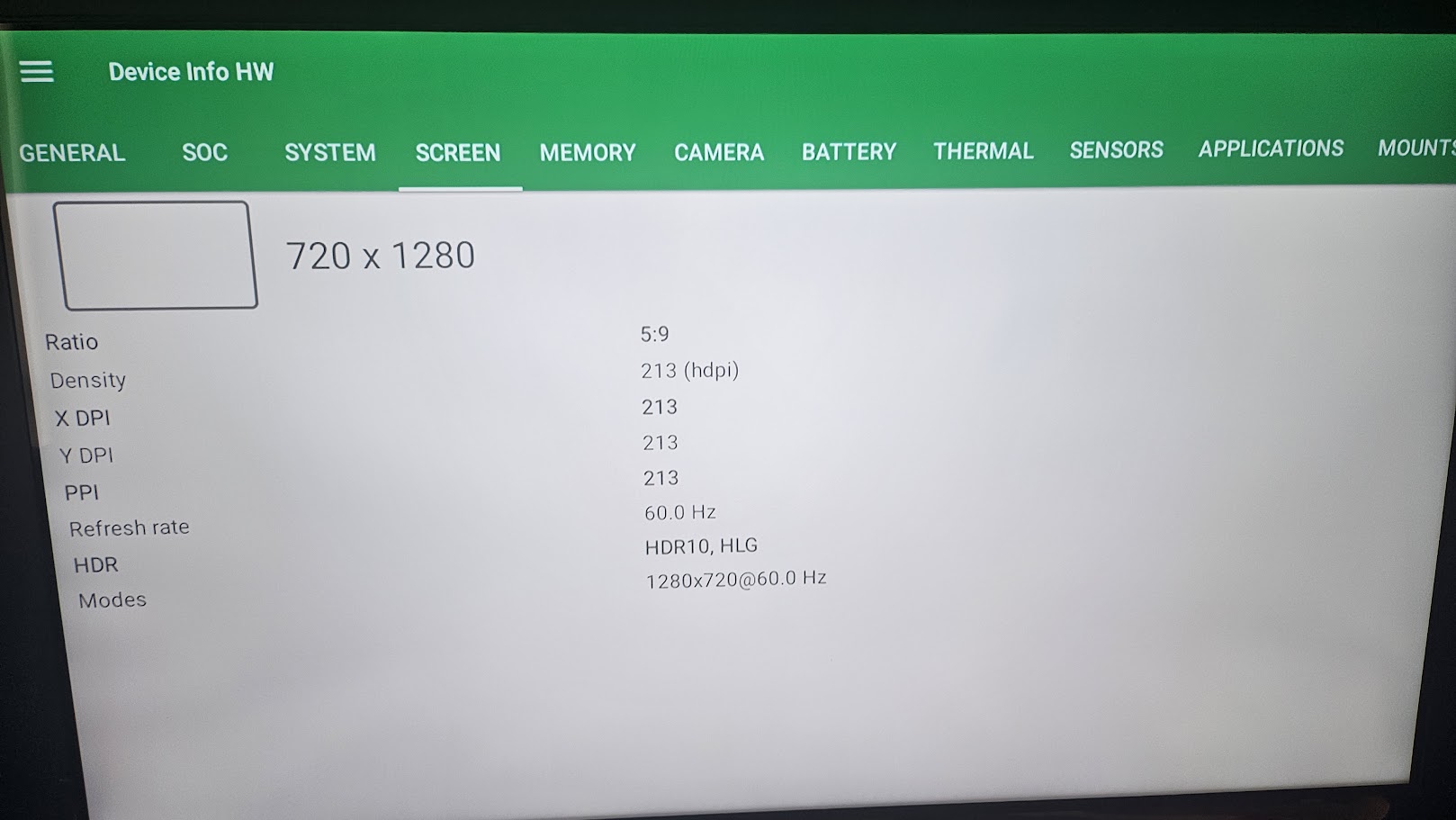

Fake Resolution: Despite 4K/8K claims, the internal UI is permanently rendering at low-definition 720p (720x1280).

5. Video Evidence & Verification

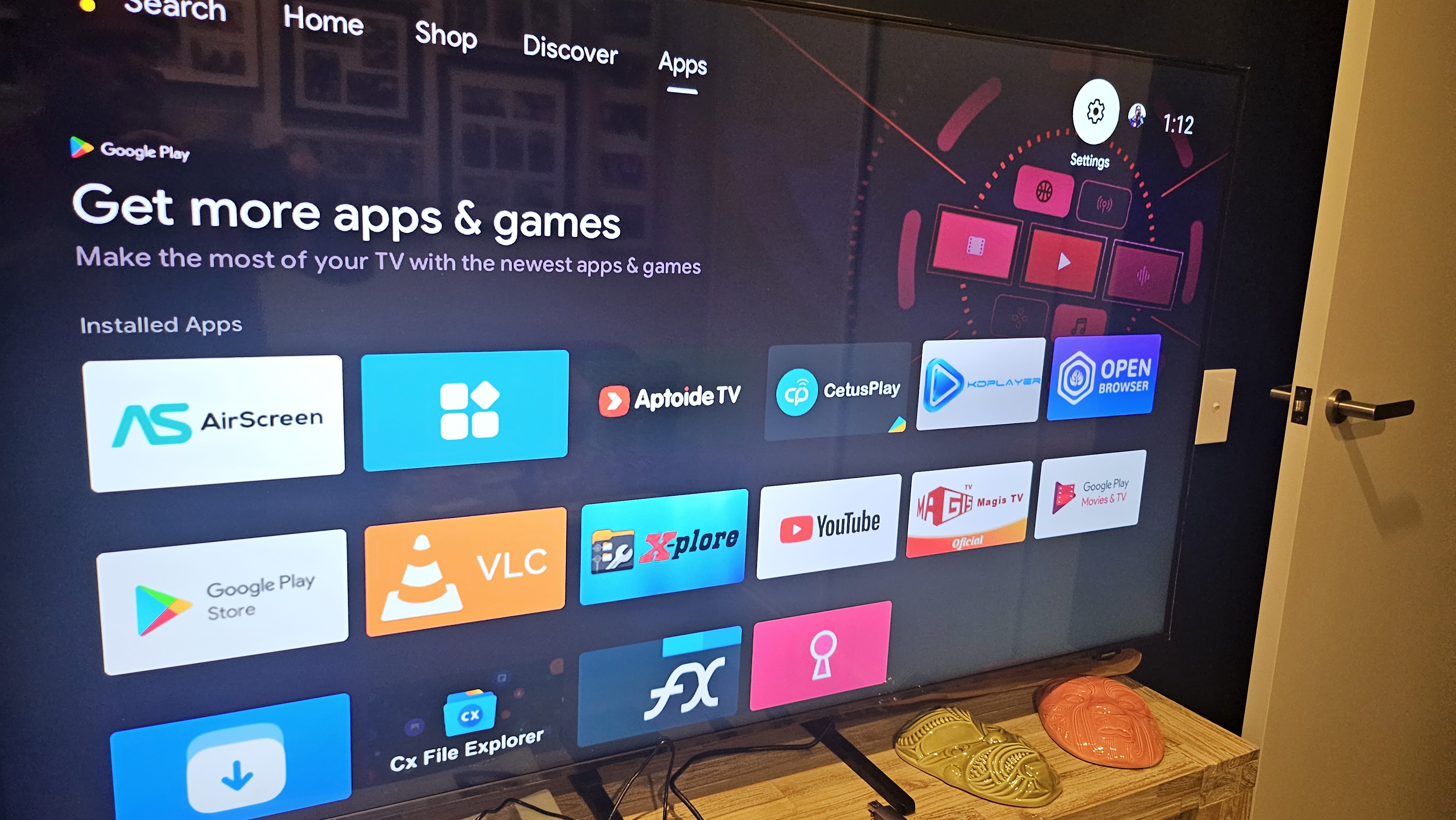

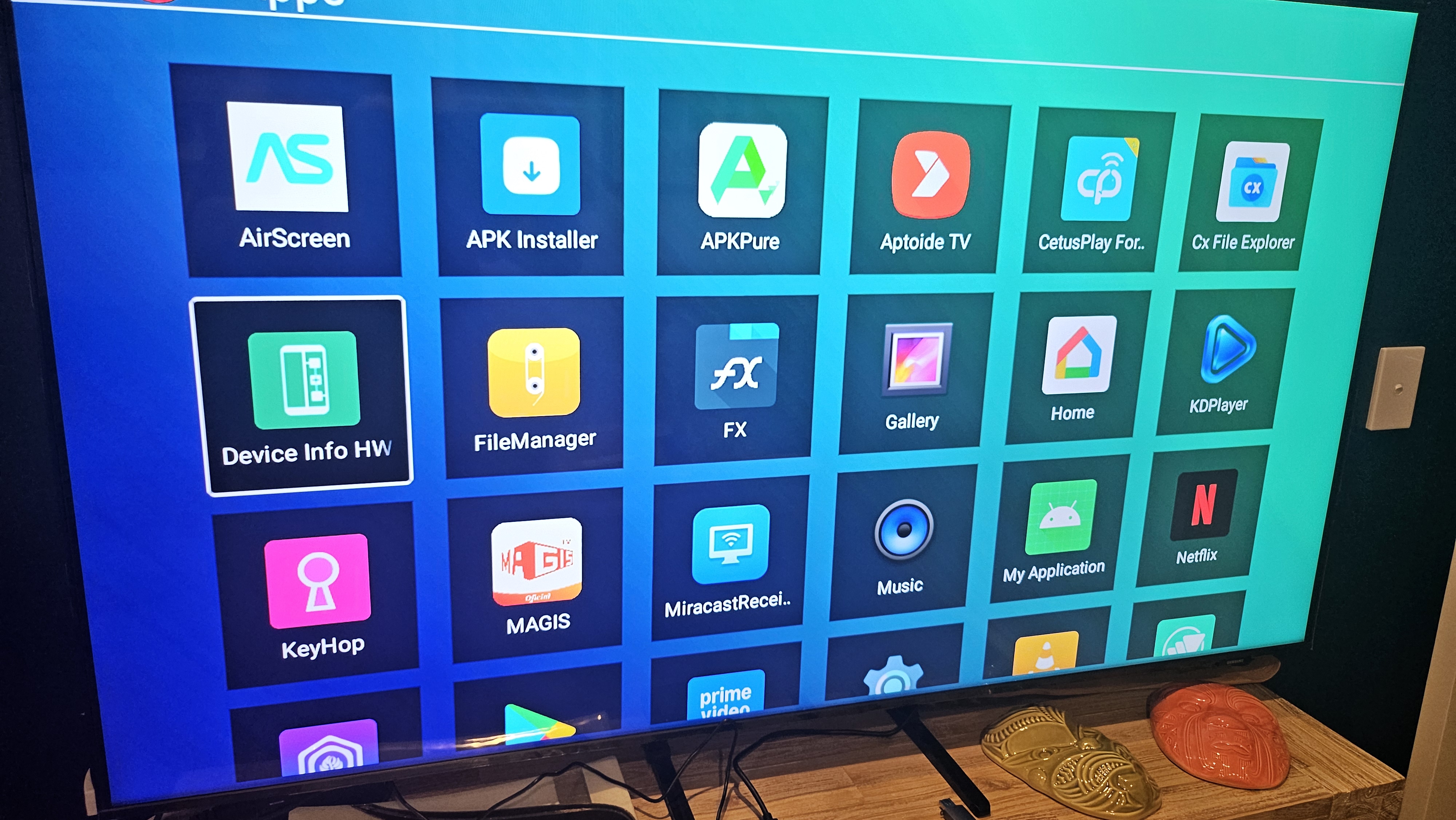

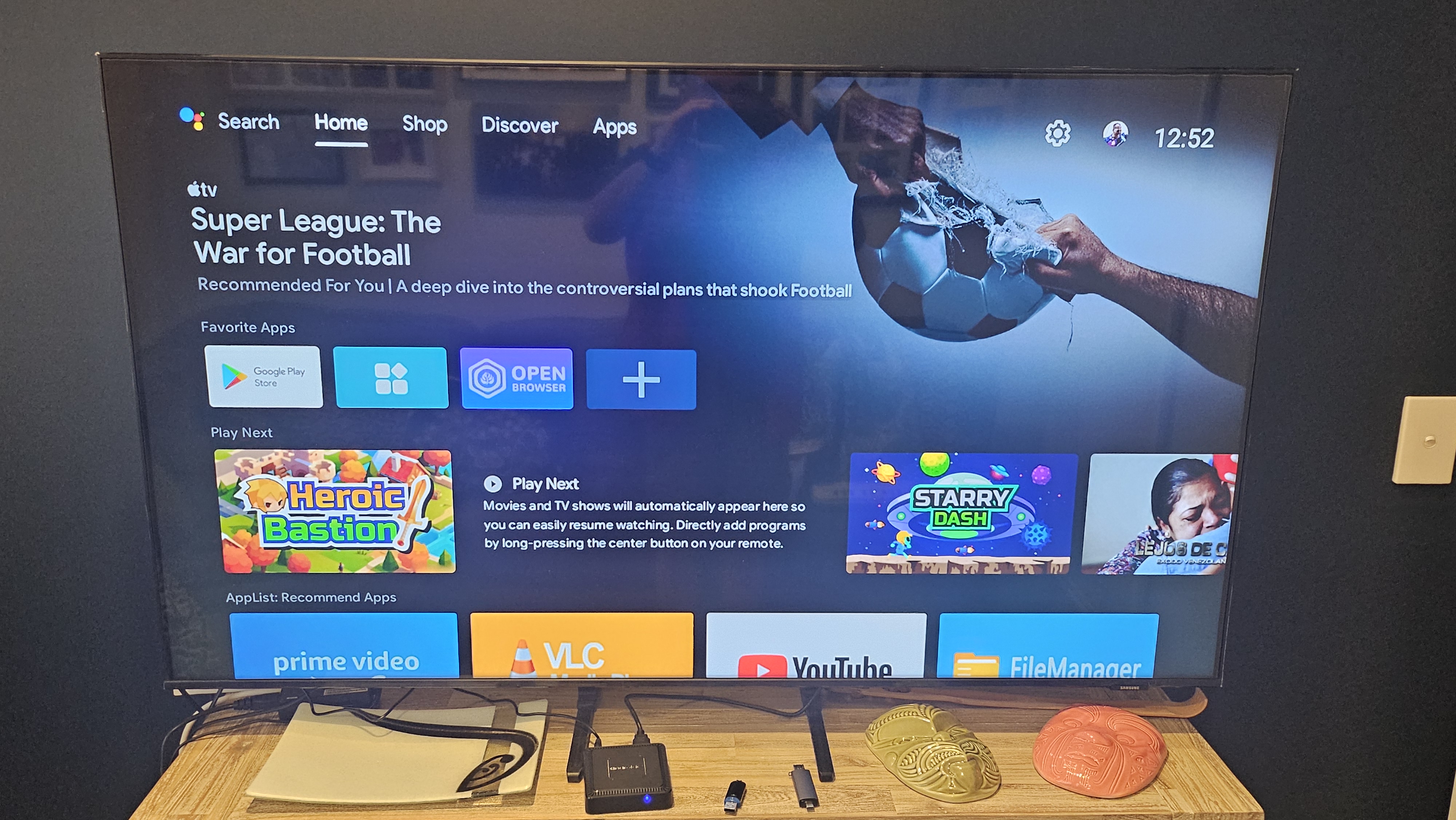

Device Interface & Lag Analysis

Technical Verification Walkthrough
